FLEXIBILNÍ SPIRÁLOVÉ SPOJKY

50201070290 1

gmt new logo use

Spirálové spojky jsou vysoce flexibilní, přesně opracované spojky, které dokonale vyrovnávají axiální, radiální i úhlové montážní chyby mezi mezi hřídelemi.

Může být hliníková nebo nerezová. Tento typ spojky je bezúdržbový, odolný vůči olejům a má i antikorozní vlastnosti.








Základní přehled parametrů

prehled


  • GMT Europe GmbH

    • Aluminum spiral beam coupling - Clamping screw – Long type
    • The flexure allowed by the beam portion of the coupling is capable of accommodating angular, parallel, and axial misalignment.
    • Rotation character of clockwise or anti-clockwise is exactly the same
    • Free maintenance, oil-resist and anti-corrosiveness
    • Offset of angular, parallel, or axial deviation are individual allowed value, so couple reasons of axial offset appearing at same time would reduce the unit allowable value
    ... Learn More

  • GMT Europe GmbH

    • Aluminum spiral beam coupling - Clamping screw – Short type
    • Zero backlash - High wrench torque rigidity and sensitivity
    • The flexure allowed by the beam portion of the coupling is capable of accommodating angular and axial misalignment
    • No accommodating to parallel misalignment - FACM-S can’t allow axial deviation caused by offset
    • Offset of angular, parallel, or axial deviation are individual allowed value, so couple reasons of axial offset appearing at same time would reduce the unit allowable value
    ... Learn More

  • FACS
    Hliníkové provedení / Vnější průměr 16-34mm / 0,5-3,0Nm / Max.9500rpm

    Flexibilní spirálová spojka FACS - Velikost: 16 - 34mm (vnější průměr) - Přenášený kroutící moment: 0,5 - 3,0Nm - Typ zajištění: šrouby dle ISO 4762 - Materiál: eloxovaný hliník ... Learn More

  • FAMML
    Hliníkové provedení / Vnější průměr 8-40mm / 0,1-8,0Nm / Max.48000rpm

    Flexibilní spirálová spojka FAMML - Velikost: 8 - 40mm (vnější průměr) - Přenášený kroutící moment: 0,1 - 8,0Nm - Typ zajištění: stavěcí šroub DIN914 - Materiál: eloxovaný hliník ... Learn More

  • GMT Europe GmbH

    • Aluminum - High rigidity – Set screw - Short type
    • Zero backlash - High wrench torque rigidity and sensitivity
    • The flexure allowed by the beam portion of the coupling is capable of accommodating angular, parallel, and axial misalignment
    • FAMM-S can’t allow axial deviation caused by offset
    • Offset of angular, parallel, or axial deviation are individual allowed value, so couple reasons of axial offset appearing at same time would reduce the unit allowable value
    ... Learn More

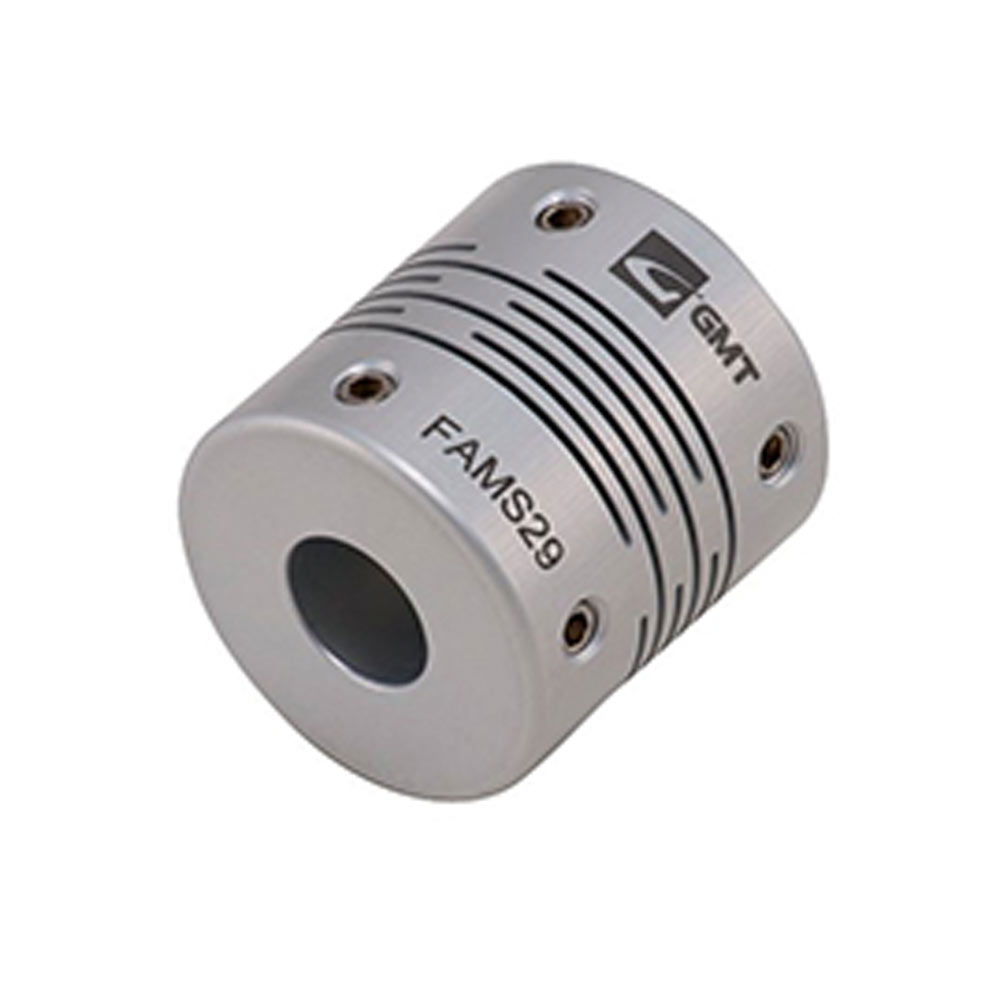

  • FAMS
    Hliníkové provedení / Vnější průměr 16-34mm / 0,5-3,0Nm / Max.24000rpm

    Flexibilní spirálová spojka FAMS - Velikost: 16 - 34mm (vnější průměr) - Přenášený kroutící moment: 0,5 - 3,0Nm - Typ zajištění: stavěcí šroub DIN914 - Materiál: eloxovaný hliník ... Learn More

  • GMT Europe GmbH

    • Stainless Steel spiral beam coupling - Clamping screw – Long type
    • The flexure allowed by the beam portion of the coupling is capable of accommodating angular, parallel, and axial misalignment.
    • Rotation character of clockwise or anti-clockwise is exactly the same
    • Offset of angular, parallel, or axial deviation are individual allowed value, so couple reasons of axial offset appearing at same time would reduce the unit allowable value
    ... Learn More

  • GMT Europe GmbH

    • Stainless Steel spiral beam coupling - Clamping screw – Short type
    • Zero backlash - High wrench torque rigidity and sensitivity
    • FAMM-S can’t allow axial deviation caused by offset - No accommodating to parallel misalignment
    • Rotation character of clockwise or anti-clockwise is exactly the same
    • Offset of angular, parallel, or axial deviation are individual allowed value, so couple reasons of axial offset appearing at same time would reduce the unit allowable value.
    ... Learn More

  • GMT Europe GmbH

    • Stainless Steel - High rigidity – Set screw - Long type
    • Zero backlash - High wrench torque rigidity and sensitivity
    • The flexure allowed by the beam portion of the coupling is capable of accommodating angular, parallel, and axial misalignment
    • Rotation character of clockwise or anti-clockwise is exactly the same
    • Offset of angular, parallel, or axial deviation are individual allowed value, so couple reasons of axial offset appearing at same time would reduce the unit allowable value
    ... Learn More

  • GMT Europe GmbH

    • Stainless Steel - High rigidity – Set screw - Short type
    • Zero backlash - High wrench torque rigidity and sensitivity
    • The flexure allowed by the beam portion of the coupling is capable of accommodating angular, parallel, and axial misalignment
    • FAMM-S can’t allow axial deviation caused by offset
    • Offset of angular, parallel, or axial deviation are individual allowed value, so couple reasons of axial offset appearing at same time would reduce the unit allowable value
    ... Learn More
