Functional Description

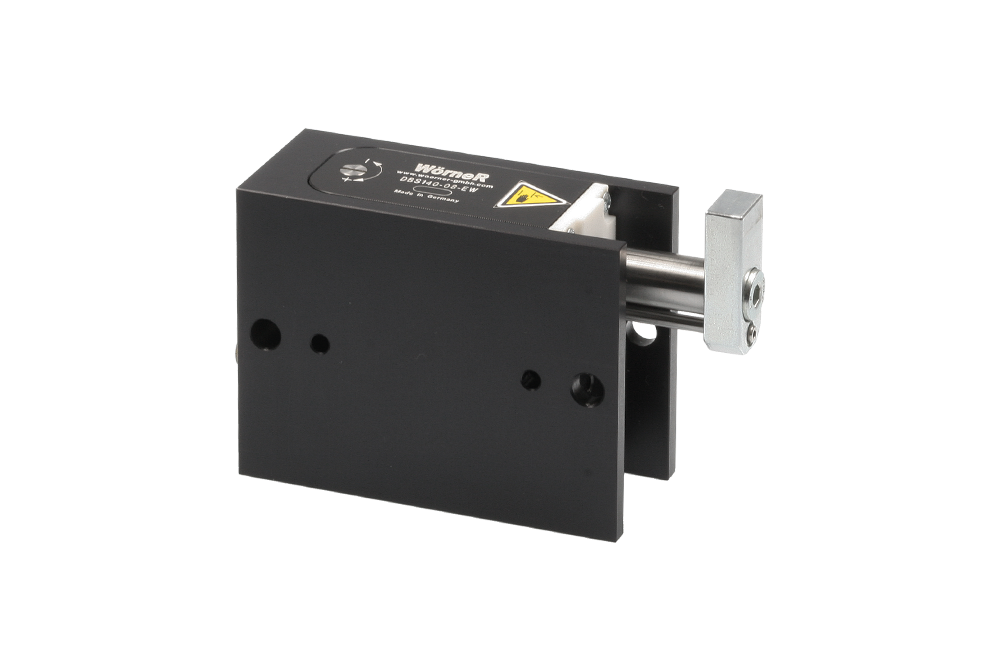

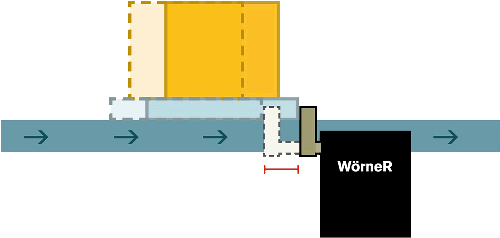

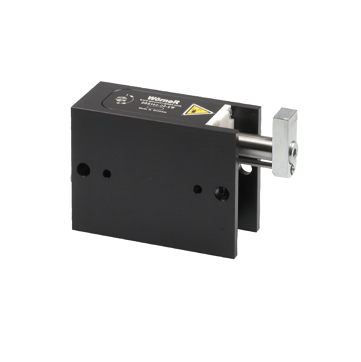

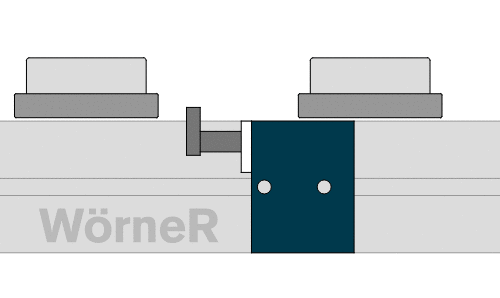

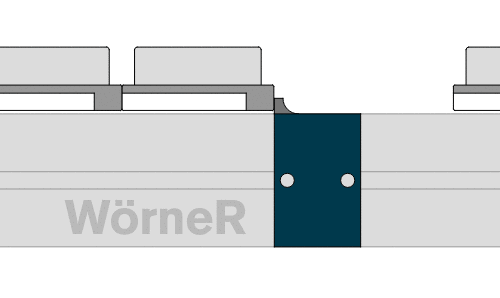

The separating stop places one or multiple pallets in a defined position and clears them individually for downstream transport. The stopping process is damped for a gentle deceleration. The lowering movement is pneumatically driven. Proximity switches can be employed to identify the upper and lower positions of the stop.


  • particularly narrow construction for direct integration into roller conveyors (without overdrive or enlargement of the roller pitch)
  • gentle deceleration and stopping of pallet through integrated damping system
  • force of impact reduced by up to 95% in comparison to undamped stoppers
  • precise positioning of the pallet through reliable running into the final position and no opposing force in the end position
  • wide range of applications thanks to simple and infinitely adjustable damping force


  • lowering stroke: 8 mm

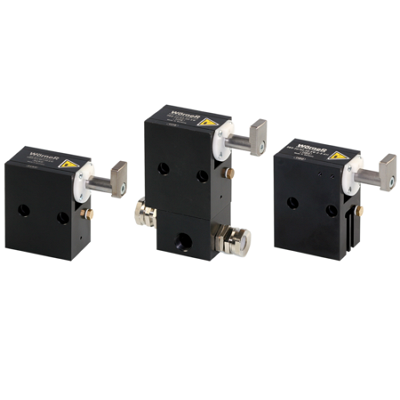

  • single-acting/double-acting (EW/DW)
  • customer-specific solutions
  • various accessories

Scope of application

Propelling force: 21 N

Conveyor speed Pallet weight
06 m/min 5 - 30 kg
09 5 - 25
12 5 - 12
18 5 - 8

All specifications apply for a coefficient of friction between means of conveyance and pallet of μ = 0.07 and a steel stop. They are experimentally determined and confirmed in endurance and fatigue tests.
