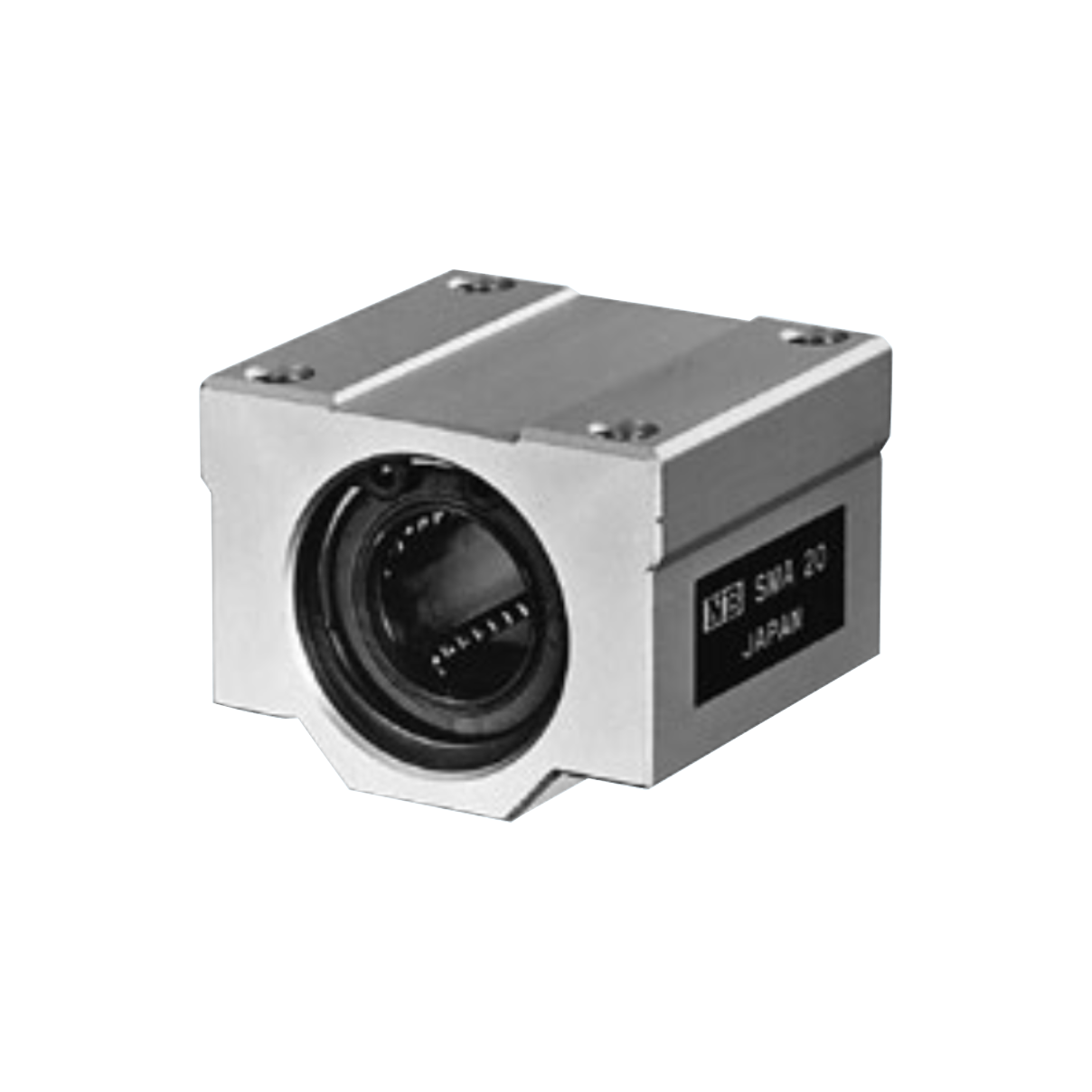

Lineární set SMA
Lineární set SMA
- Pro průměry hřídele: 3 - 60mm
- Provedení: uzavřené / standardní
- Statická únosnost: až 10kN
- Dynamická únosnost: až 4,7kN

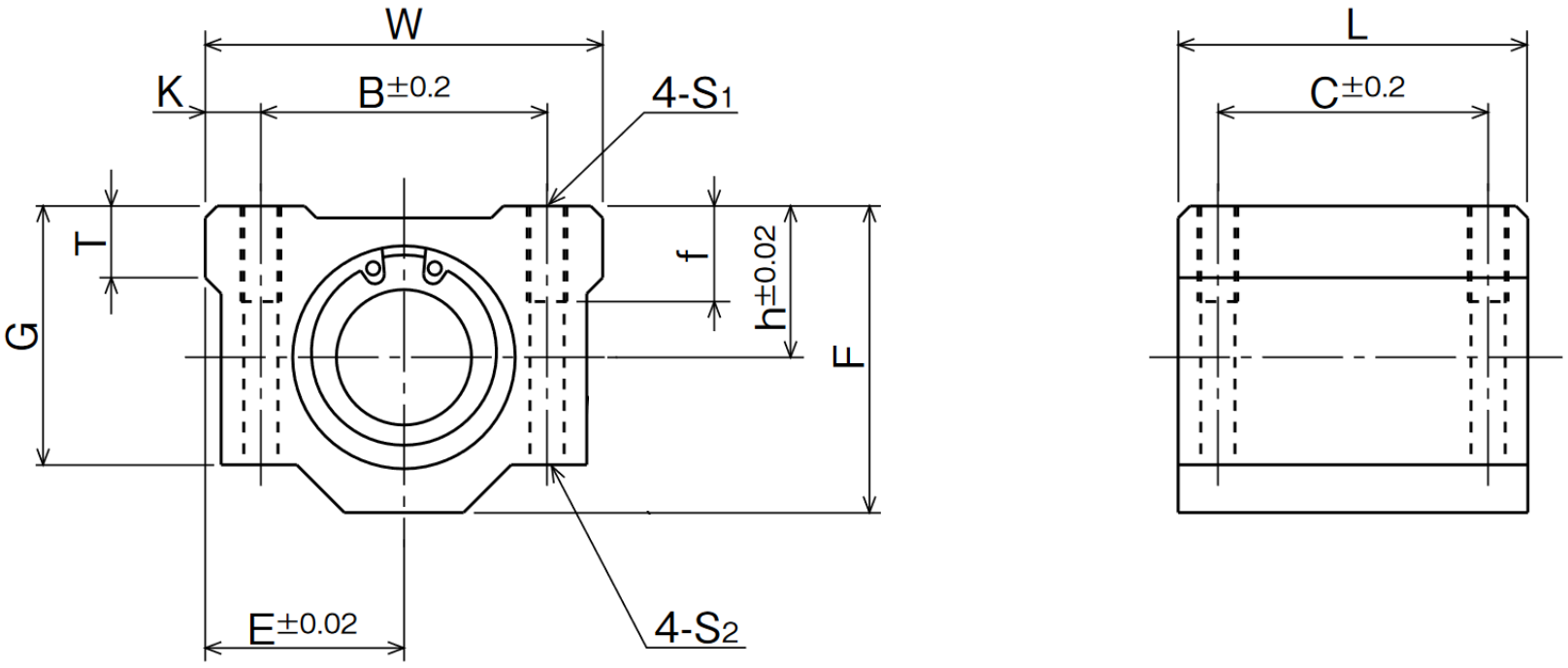

Rozměry a únosnost:
| Typ / Provedení | Rozměry (mm) | Silové zatížení (N) | ||||||||||||||
| Dynamické | Statické | |||||||||||||||
| d | h | E | W | L | F | G | T | B | C | K | S1 |
f | S2 | C | Co | |
| SMA 3 G UU | 3 | 5,0 | 8,0 | 16 | 13 | 10,0 | 8,0 | - | 11,0 | 8 | 2,5 | M2 | - | - | 69 | 105 |
| SMA 4 G UU | 4 | 5,5 | 8,5 | 17 | 15 | 11,0 | 9,0 | - | 12,0 | 10 | 2,5 | M3 | - | - | 88 | 127 |
| SMA 5 G UU | 5 | 7,0 | 11,0 | 22 | 18 | 14,0 | 11,0 | - | 16,0 | 12 | 3,0 | M3 | - | - | 167 | 206 |
| SMA 6 G UU | 6 | 9,0 | 12,0 | 30 | 25 | 18,0 | 15,0 | 6 | 20,0 | 15 | 5,0 | M4 | 3,4 | 3,4 | 206 | 265 |
| SMA 8 G UU | 8 | 11,0 | 17,0 | 34 | 30 | 22,0 | 18,0 | 6 | 24,0 | 18 | 5,0 | M4 | 3,4 | 3,4 | 274 | 392 |
| SMA 10 G UU | 10 | 13,0 | 20,0 | 40 | 35 | 26,0 | 21,0 | 8 | 28,0 | 21 | 6,0 | M5 | 4,3 | 4,3 | 372 | 549 |
| SMA 12 G UU | 12 | 15,0 | 21,0 | 42 | 36 | 28,0 | 24,0 | 8 | 30,5 | 26 | 5,75 | M5 | 4,3 | 4,3 | 510 | 784 |
| SMA 13 G UU | 13 | 15,0 | 22,0 | 44 | 39 | 30,0 | 24,5 | 8 | 33,0 | 26 | 5,5 | M5 | 4,3 | 4,3 | 510 | 784 |
| SMA 16 G UU | 16 | 19,0 | 25,0 | 50 | 44 | 38,5 | 32,5 | 9 | 36,0 | 34 | 7,0 | M5 | 4,3 | 4,3 | 774 | 1180 |
| SMA 20 G UU | 20 | 21,0 | 27,0 | 54 | 50 | 41,0 | 35,0 | 11 | 40,0 | 40 | 7,0 | M6 | 5,2 | 5,2 | 882 | 1370 |
| SMA 25 G UU | 25 | 26,0 | 38,0 | 76 | 67 | 51,5 | 42,0 | 12 | 54,0 | 50 | 11,0 | M8 | 7,0 | 7,0 | 980 | 1570 |
| SMA 30 G UU | 30 | 30,0 | 39,0 | 78 | 72 | 59,5 | 49,0 | 15 | 58,0 | 58 | 10,0 | M8 | 7,0 | 7,0 | 1570 | 2740 |
| SMA 35 G UU | 35 | 34,0 | 45,0 | 90 | 80 | 68,0 | 54,0 | 18 | 70,0 | 60 | 10,0 | M8 | 7,0 | 7,0 | 1670 | 3140 |
| SMA 40 G UU | 40 | 40,0 | 51,0 | 102 | 90 | 78,0 | 62,0 | 20 | 80,0 | 60 | 11,0 | M10 | 8,7 | 8,7 | 2160 | 4020 |
| SMA 50 G UU | 50 | 52,0 | 61,0 | 122 | 110 | 102,0 | 80,0 | 25 | 100,0 | 80 | 11,0 | M10 | 8,7 | 8,7 | 3820 | 7940 |
| SMA 60 G UU | 60 | 58,0 | 66,0 | 132 | 122 | 114,0 | 94,0 | 30 | 108,0 | 90 | 12,0 | M12 | 10,7 | 10,7 | 4700 | 10000 |

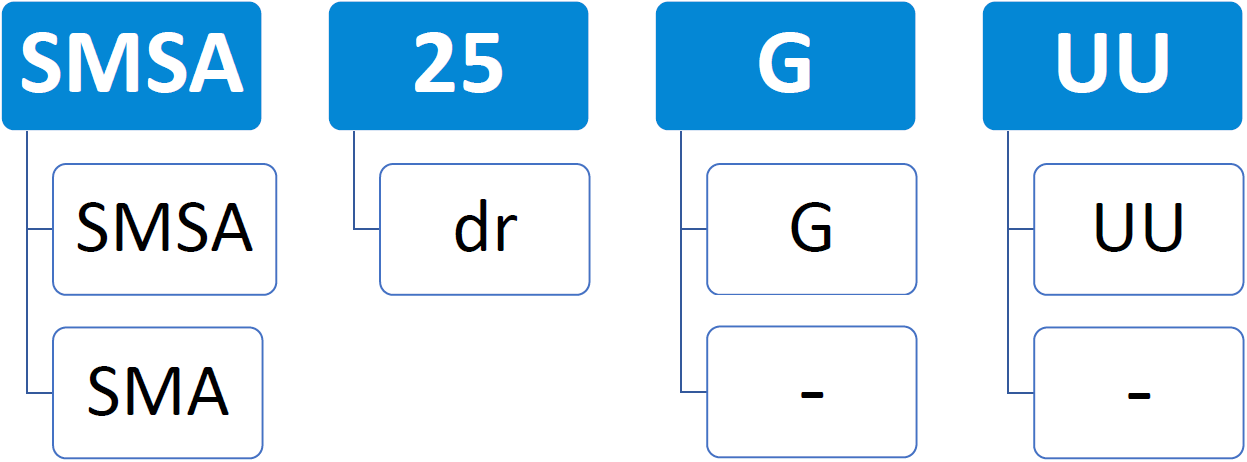

Nomenklatura značení:
Příklad značení: SMSA 25 G UU
- specifikace (SMA - standardní / SMSA - nerezové)
- 25 (vnitřní průměr)
- G (plastová klec) / bez označení (ocelová klec pro SMA nebo nerezová klec pro SMSA)
- UU (těsnění z obou stran) / bez označení (bez těsnění)
