Popis:

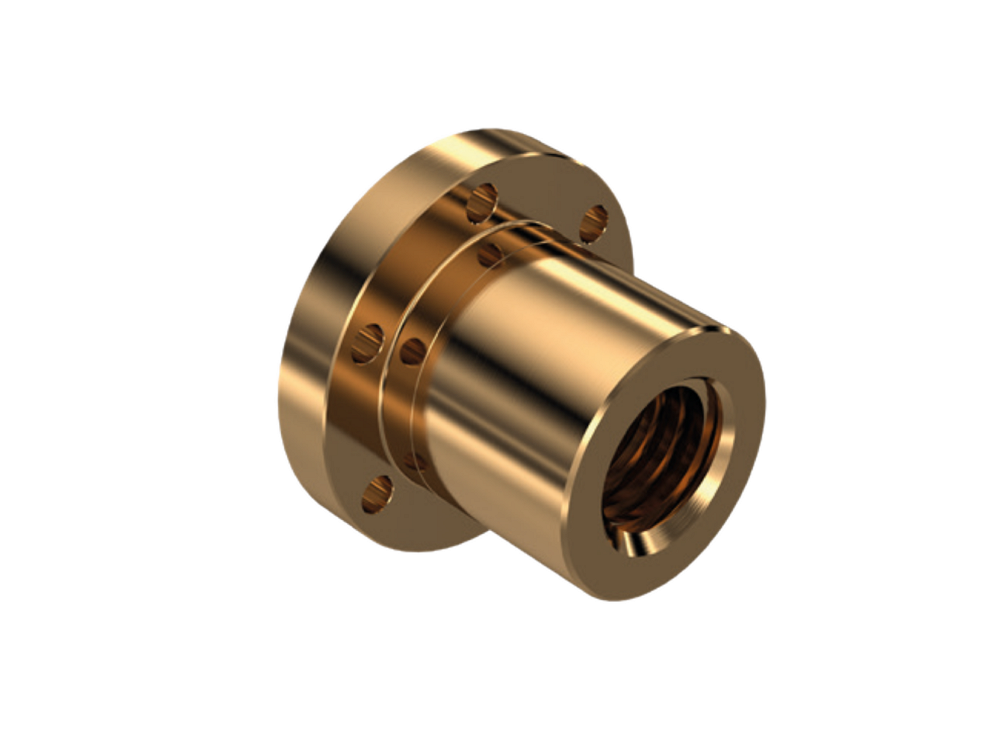

Přírubové matice EFM z červeného bronzu připravené k instalaci Pro pohybové pohony se zvlášť příznivými vlastnostmi opotřebení. EFM lze montovat pomocí kloubů KON, KKA, MAFN a KAR.
Materiál: 2.1090 (CuSn7Zn4Pb7; RG7)
Rozměry:

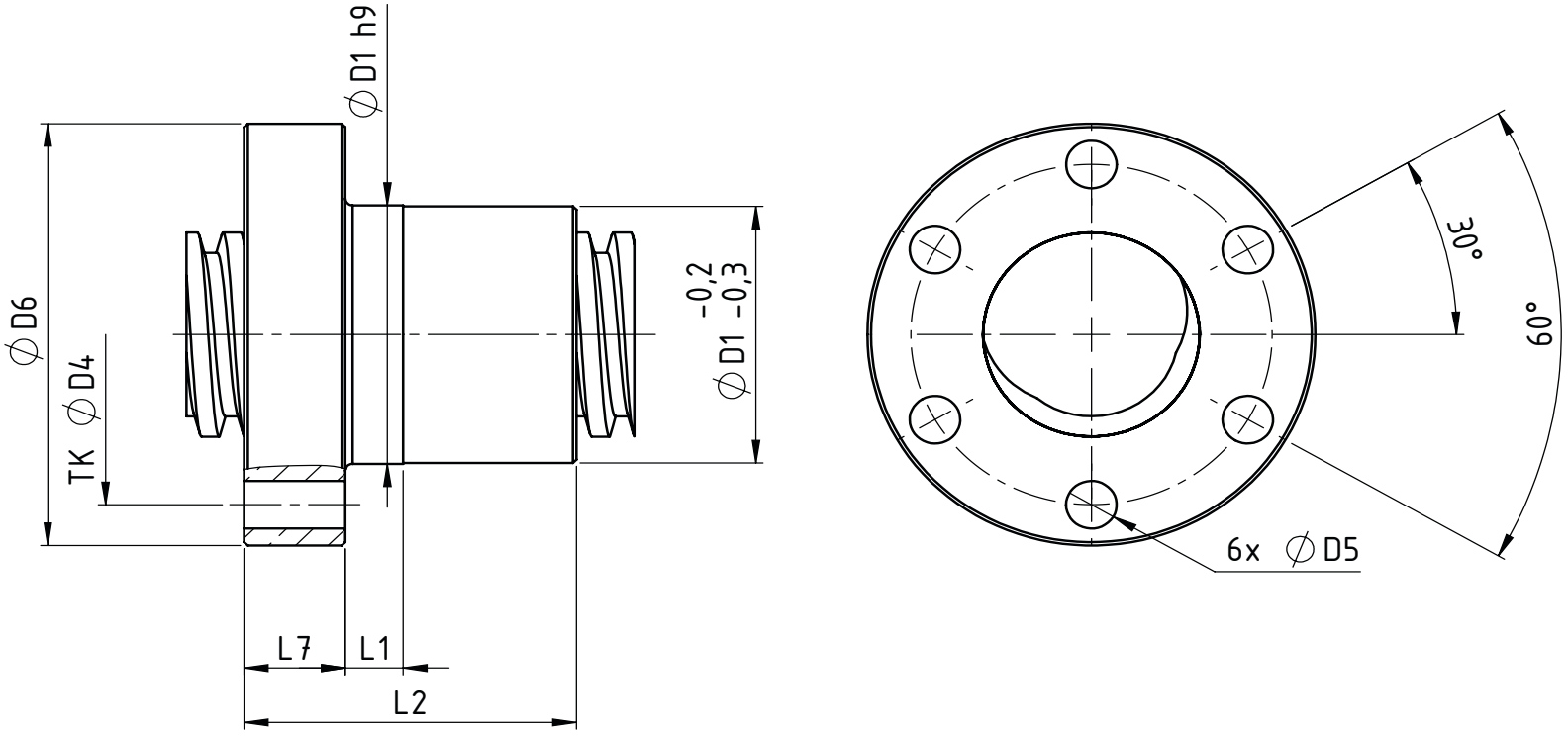

| Typ | Rozměry [mm] |
||||||
| D1 h9 | D4 | D6 | D5 | L1 | L2 | L7 | |
| EFM-Tr12x3 |
024 | 032 | 040 | 06 | 10 | 028 | 12 |
| EFM-Tr12x6 P3 | 024 | 032 | 040 | 06 | 10 | 028 | 12 |
| EFM-Tr14x3 | 028 | 038 | 048 | 06 | 08 | 035 | 12 |
| EFM-Tr14x14 | 028 | 038 | 048 | 06 | 08 | 035 | 12 |
| EFM-Tr16x2 | 028 | 038 | 048 | 06 | 08 | 044 | 12 |
| EFM-Tr16x4 | 028 | 038 | 048 | 06 | 08 | 044 | 12 |
| EFM-Tr16x8 P4 | 028 | 038 | 048 | 06 | 08 | 044 | 12 |
| EFM-Tr18x4 | 028 | 038 | 048 | 06 | 08 | 044 | 12 |
| EFM-Tr18x6 | 028 | 038 | 048 | 06 | 08 | 044 | 12 |
| EFM-Tr18x8 P4 | 028 | 038 | 048 | 06 | 08 | 044 | 12 |
| EFM-Tr20x2 | 032 | 045 | 055 | 07 | 08 | 044 | 12 |
| EFM-Tr20x4 | 032 | 045 | 055 | 07 | 08 | 044 | 12 |
| EFM-Tr20x6 | 032 | 045 | 055 | 07 | 08 | 044 | 12 |
| EFM-Tr20x8 P4 | 032 | 045 | 055 | 07 | 08 | 044 | 12 |
| EFM-Tr20x16 P4 | 032 | 045 | 055 | 07 | 08 | 044 | 12 |
| EFM-Tr22x5 | 032 | 045 | 055 | 07 | 08 | 044 | 12 |
| EFM-Tr24x5 | 032 | 045 | 055 | 07 | 08 | 044 | 12 |
| EFM-Tr24x10 P5 | 032 | 045 | 055 | 07 | 08 | 044 | 12 |
| EFM-Tr26x5 | 038 | 050 | 062 | 07 | 08 | 046 | 14 |
| EFM-Tr26x6 | 038 | 050 | 062 | 07 | 08 | 046 | 14 |
| EFM-Tr28x5 | 038 | 050 | 062 | 07 | 08 | 046 | 14 |
| EFM-Tr30x3 | 038 | 050 | 062 | 07 | 08 | 046 | 14 |
| EFM-Tr30x6 | 038 | 050 | 062 | 07 | 08 | 046 | 14 |
| EFM-Tr30x12 P6 | 038 | 050 | 062 | 07 | 08 | 046 | 14 |
| EFM-Tr32x6 | 045 | 058 | 070 | 07 | 10 | 054 | 16 |
| EFM-Tr36x3 | 045 | 058 | 070 | 07 | 10 | 059 | 16 |
| EFM-Tr36x6 | 045 | 058 | 070 | 07 | 10 | 059 | 16 |
| EFM-Tr36x12 P6 | 045 | 058 | 070 | 07 | 10 | 059 | 16 |
| EFM-Tr40x7 | 063 | 078 | 095 | 09 | 10 | 073 | 16 |
| EFM-Tr40x8 | 063 | 078 | 095 | 09 | 10 | 073 | 16 |
| EFM-Tr40x14 P7 | 063 | 078 | 095 | 09 | 10 | 073 | 16 |
| EFM-Tr44x7 | 063 | 078 | 095 | 09 | 10 | 073 | 16 |
| EFM-Tr50x8 | 072 | 090 | 110 | 11 | 10 | 097 | 18 |
| EFM-Tr55x9 | 072 | 090 | 110 | 11 | 10 | 097 | 18 |
| EFM-Tr60x9 | 085 | 105 | 125 | 11 | 10 | 099 | 20 |
| EFM-Tr60x12 | 085 | 105 | 125 | 11 | 10 | 099 | 20 |
| EFM-Tr60x18 P9 | 085 | 105 | 125 | 11 | 10 | 099 | 20 |
| EFM-Tr70x10 | 095 | 140 | 180 | 17 | 16 | 100 | 30 |
| EFM-Tr70x12 | 095 | 140 | 180 | 17 | 16 | 100 | 30 |
| EFM-Tr80x10 | 105 | 150 | 190 | 17 | 16 | 110 | 30 |
| EFM-Tr90x16 | 120 | 165 | 210 | 25 | 20 | 130 | 35 |
| EFM-Tr100x10 | 130 | 185 | 240 | 25 | 20 | 130 | 35 |
| EFM-Tr100x6 | 130 | 185 | 240 | 25 | 20 | 130 | 35 |
| EFM-Tr120x14 | 160 | 230 | 300 | 28 | 20 | 160 | 40 |
| EFM-Tr120x16 | 160 | 230 | 300 | 28 | 20 | 160 | 40 |
